Our goal is to have a huge inventory of the common trusses like 20, 24, 30, 36 &40' 4:12 pitch trusses and 10,12,14 foot 2:12 lean to trusses in stock and ready to be picked up or delivered. But for right now, we do not guarantee what is in stock. Please call for availability before arranging a delivery or pick-up.

Prices subject to change without notice!
  1. Lead times vary from season to season.
  2. Highlighted items are generally in stock.
  3. All trusses come with necessary nuts and bolts to assemble.
  4. Roof trusses are on a 4:12 pitch and lean to trusses are on a 2:12 pitch.
  5. All trusses come with a 1' overhang.
  6. Custom overhang and pitches are available for additional charges shown below.

Trusses

TRUSS SIZE STANDARD PRICE HD NUMBER OF CUPS METAL LENGTH
SINGLE CHORDED TOP
20' $251.64 17 12'
21' $255.64 19 12'6"
22' $259.64 19 13'1"
23' $261.64 21 13'6"
24' $263.64 21 14'
25' $269.14 21 14'9"
26' $274.64 21 15'4"
27' $278.64 23 15'10"
28' $282.64 23 16'3"
29' $294.14 23 16'10"
30' $305.64 23 17'4"
31' $310.14 25 17'10"
32' $314.64 25 18'4"
33' $320.14 25 18'11'
34' $325.64 27 19'6"
35' $335.64 27 19'11"
HALF DOUBLE CHORDED TOP
36' $390.64 29 20'6"
37' $395.14 29 21'
38' $399.64 29 21'6"
39' $405.64 31 22'1"
40' $411.64 31 22'8"
41' $417.14 31 23'1"
42' $422.64 33 23'6"
FULL DOUBLE CHORDED TOP
43' $514.14 33 24'2"
44' $518.64 33 24'8"


Lean To - Trusses

TRUSS SIZE STANDARD PRICE HD NUMBER OF CUPS METAL LENGTH
8' $131.12 - -
10' $152.22 - -
12' $164.00 - -
14' $175.78 - -
16' $208.20 - -
18' $227.32 - -
20' $241.32 - -
22' $275.12 - -
24' $302.12 - -


Extras

ITEM PRICE

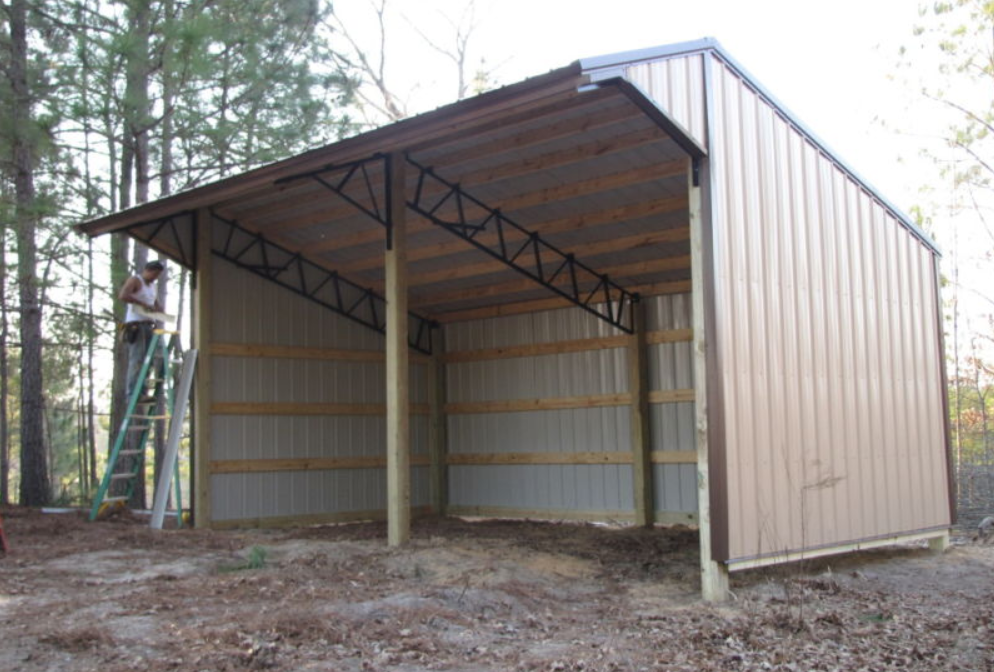

Snoot Truss - Click picture to view snoot truss $75.00
Bar joist are $14.00 per foot on sizes of 10', 16', 20' and 24' feet. 30' feet is available for $20.00 per foot.
Crating and bundling for a box truck -- this is necessary when not shipping on a flatbed truck. $20.00 per foot surcharge for crating if being shipped by van lines (i.e. 16ft crate = $320.00)
Pitch change $20 per truss
Overhang changes $20 per truss
Color painting $2 per total foot
